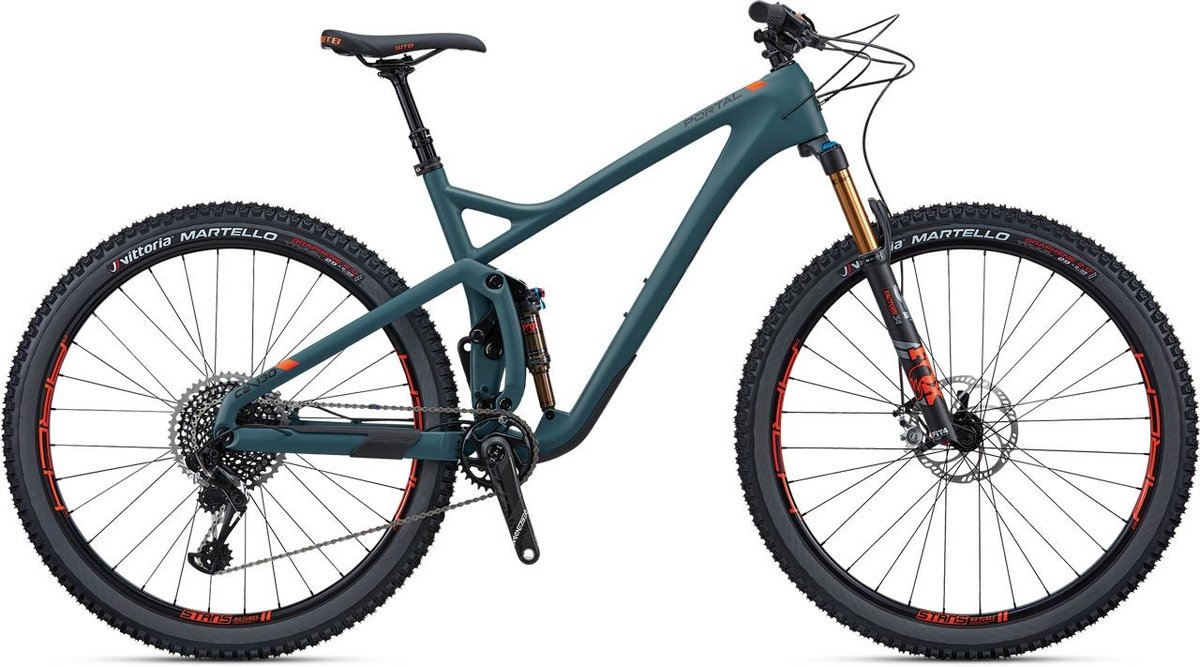

Jamis Portal C2 - 2020

Jamis Portal C2
$6,460.00
$9,500.00
Color: Riptide
Size: Select size
Please select options Unavailable

Details

Portal - noun: DOOR, ENTRANCE; especially a grand or imposing one.

Pass boldly through to the other side and impose on the most fun you've had on two wheels with the Jamis Portal C2. Its high-modulus carbon fiber frame swings your rear wheel through 130mm of micro-tracking 3VO suspension, renowned for its trail-contouring ability that goes hand-in-hand with big-hit burliness. A 130mm Fox 34 FLOAT fork easily handles the rough stuff up front, ensuring your trail-spec'd Stan's NoTubes Arch MK3 wheels track right where you want them, ready and willing to dig deep, wrapped in Vittoria's Martello tubeless tires.

The entire trail opens to you when you've got the proven combo of a huge-range SRAM XO1 Eagle 12-speed drivetrain and Magura MT8 brakes to ensure you have the leverage when you need it, the speed when you want it, and the power to reign it all in when the speed gets critical. And, the Portal will feel as familiar as walking out your front door thanks to a rider-tuned Race Face cockpit, and an instantly dialable stance, courtesy of your Race Face Aeffect dropper.

Dropper posts

A dropper seatpost allows you to quickly lower and raise your seat to give you an ideal riding position. Dropping your seat creates a lower center of gravity for better control and maneuverability on steep descents, while raising it puts you at normal riding height for efficient pedaling.

Construction can include either hydraulic- or cable-actuated systems and the post’s travel can either be infinitely adjustable or stopped at set intervals, depending on the model.

Dropper seatposts come in standard lengths and diameters and vary by the amount of travel.

Specs

Frame Dyad Pro High Modulus Carbon Fiber, 130mm travel 3VO suspension, Enduro Max sealed bearing pivots, 1.5 - 1 1/8" tapered head tube, 12x148mm thru-axle, Internal dropper post routing, Custom Jamis upper chainguide mounts, ISCG05 lower chainguide mounts, 10mm hardware, replaceable derailleur hanger
Fork Fox Factory 34 Float 29" w/ 3-position adjust compression & lock-out,15x110mm axle, air spring compression, rebound adjust, tapered alloy steerer, 130mm travel
Headset FSA Orbit IS Integrated, 8mm cone spacer
Rear Shock Fox Float DPS Factory Series Kashima EVOL shock w/3-position compression
Axles Front: 110 x 15mm
Rear: 148 x 12mm
Rims/Wheels Stan's Arch MK3 29" tubeless
Hubs Stan's NEO
Spokes Sapim Race
Tires Vittoria Martello 29 x 2.35", TNT tubeless
Crankset Truvativ Descendant Carbon
Chainrings 32T
Bottom Bracket SRAM DUB
Chain SRAM X01 Eagle, 12-speed
Rear Derailleur SRAM X01 Eagle, 12-speed
Cassette/Rear Cogs SRAM XG1295, 12-speed, 10-50T
Shifters SRAM X01 Eagle, 1x12-speed
Handlebars Race Face Turbine R, 780mm x 20mm rise, 35mm diameter
Tape/Grips Jamis Lock-On
Stem Race Face Turbine R, 50mm extension, 35mm clamp diameter
Brakes Magura MT8 Pro hydraulic disc, Storm HC 180mm front & 160mm rear 6-bolt rotors
Saddle WTB Volt
Seat Post Race Face Aeffect R Dropper, 1x remote

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Riptide / 15.5-inch 845436072555 03-2669BL
Riptide / 17-inch 845436072562 03-2670BL
Riptide / 19-inch 845436072579 03-2671BL 210000001373
Riptide / 21-inch 845436072586 03-2672BL
