Details

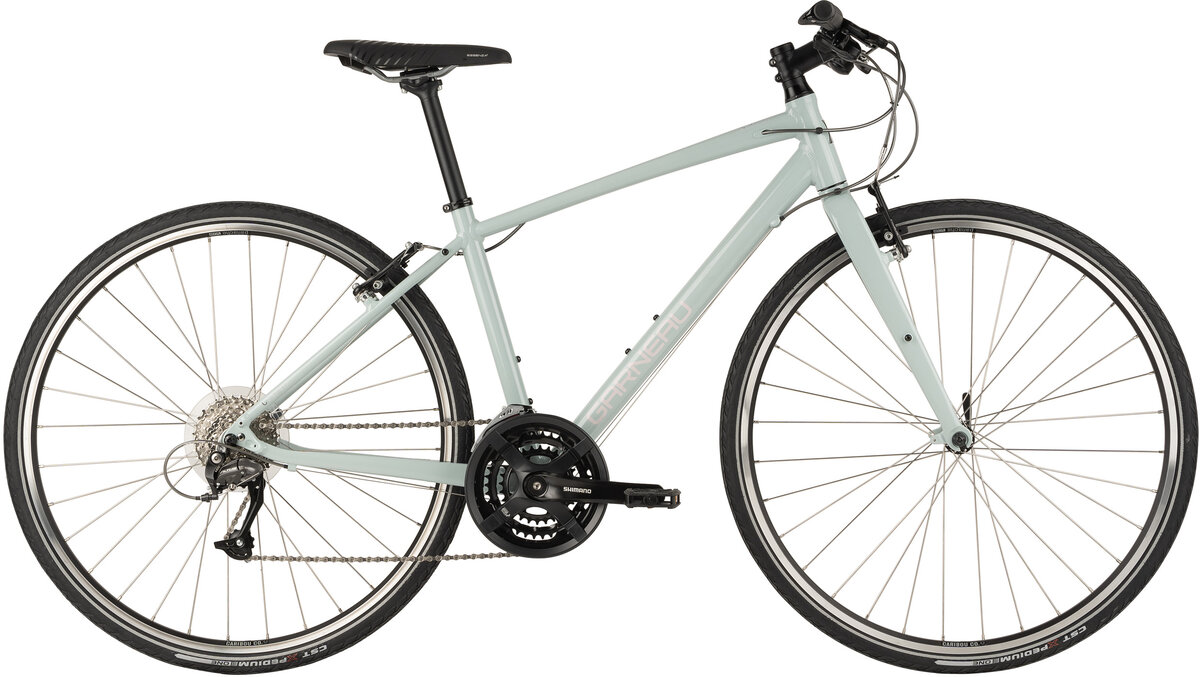

Designed to keep you safe while you ride, the Urbania Series features an ergonomic geometry combining comfort and performance for your daily commuting. Our bikes are fun to handle and have exclusive Louis Garneau safety features too.
This model was built by and for women. The fork and frame are made from ultralight aluminum and our unique reflective tires keep you visible in low light conditions. We repeat. This bike has reflective tires! That means you can now ride in the dark with peace of mind. Your tires are there to keep you safe by reflecting car and streetlights that you meet. This bike is one of our best sellers across all collections. Hurry up and come in for a spin!

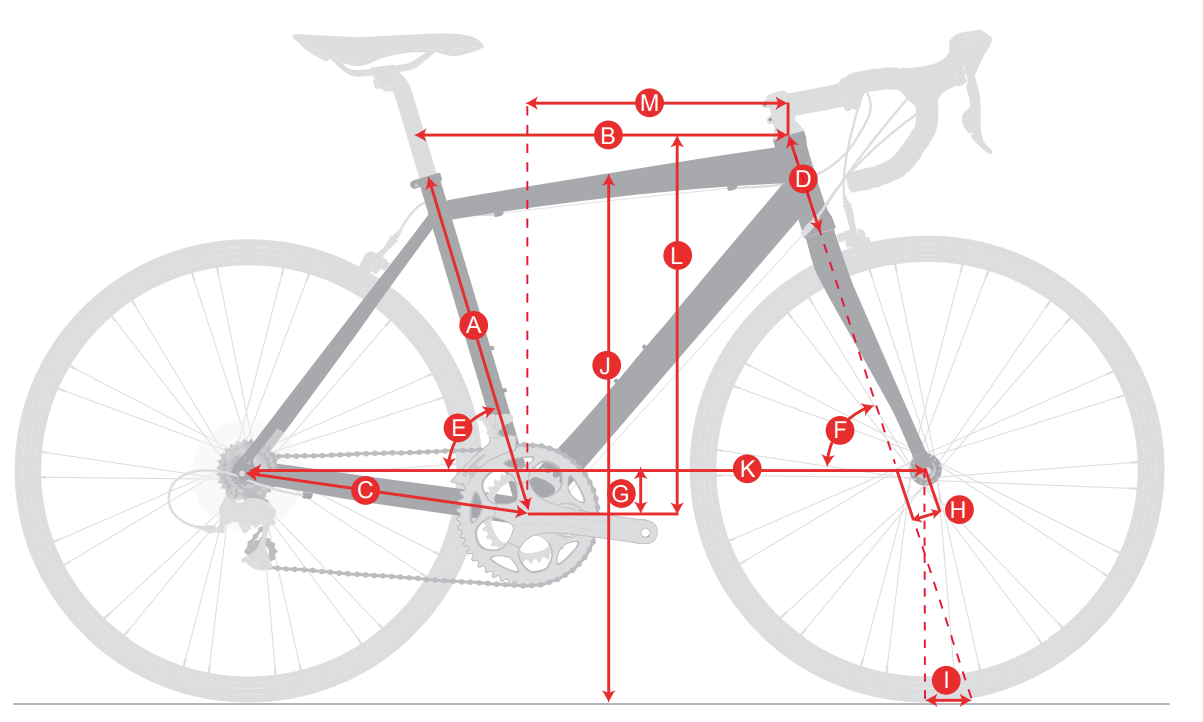

Size | Small | Medium | Large | |
---|---|---|---|---|
A | Seat tube length (mm) | 400 | 430 | 460 |
B | Effective top tube length (mm) | 522 | 543 | 565 |
C | Chain stay length (mm) | 450 | 450 | 450 |
E | Seat tube angle (°) | 75 | 74.5 | 74 |
F | Head tube angle (°) | 69 | 70.25 | 70.5 |
G | Bottom bracket drop (mm) | 70 | 70 | 70 |
H | Fork offset (mm) | 50 | 50 | 50 |
I | Trail (mm) | 80 | 72 | 70 |
J | Standover height (mm) | 719 | 742 | 769 |
K | Wheelbase (mm) | 1056 | 1061 | 1077 |
L | Stack (mm) | 540 | 560 | 584 |
M | Reach (mm) | 377 | 388 | 398 |
Specs
Frame | S-6 LT aluminum |
---|---|
Fork | S-6 aluminum |
Wheels | Panache V19 / Shimano hubs |
Rims | Panache V19, 32h |
Hubs |
Front: Shimano Rear: Shimano, cassette |
Spokes | 14g, Stainless steel |
Tires | CST Xpedium, reflective, 700 x 32c |
Bottom Bracket | Square taper, 68 x 122.5mm |
Crankset | Shimano FC- TY501, 48/38/28T |
Shifters | Shimano Altus M310, Rapidfire Plus |
Front Derailleur | Shimano Tourney TY710 |
Rear Derailleur | Shimano Altus M370 |
Cassette/Freewheel | Longyih, 11-32T, 8-speed |
Chain | KMC Z8.1 |
Brakes | C-Star, V-Type |
Brake Levers | Shimano Altus M310 |
Handlebars | Caribou Panache 2 , 15mm riser , Ø31.8 mm |
Tape/Grips | Velo ergo, lock-on |
Stem | Caribou Panache 2, 7° |
Headset | Neco, 1 1/8'' |
Seatpost | Caribou Panache 2, Ø27.2 mm |
Saddle | Selle Royal Essenza + Athletic |
Pedals | Platform |
* Subject to change without notice.
Part Numbers
Option | UPC | Store SKU |
---|---|---|
Sage / Medium | 690222311215 | 210000003550 |
Sage / Large | 690222311222 |
