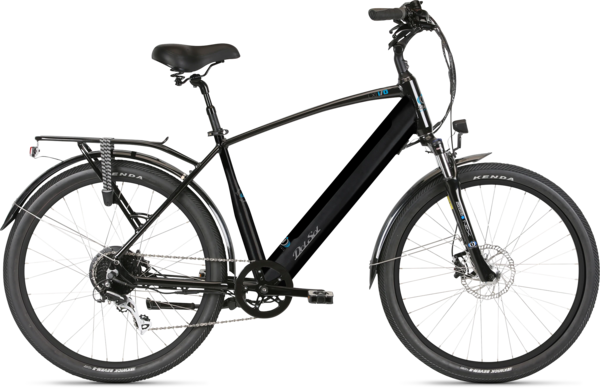

Del Sol LXI T i/O - 2021

Del Sol LXI T i/O
Color: Black
Size: Medium
Please select options Unavailable


- Throttle allows for versatility and ease of starting when loaded down with groceries/supplies
- Robust 8-speed drivetrain resists torque-based e-bike wear through a thicker chain
- 14.5Ah/522Wh battery provides plenty of capacity for greater distances, loaded travel, and throttle usage
- E-bike specific Tektro HD-E350 hydraulic brakes have an engine cut-off built in for worry free e-bike riding
- Built-in rear rack melds utilitarian simplicity with aesthetics
- Class 2 e-bike: throttle only or pedal assist up to 20mph


Frame LXI i/O | 6061 heat-treated aluminum | TIG-welded construction | fully internal battery | internal e-bike wiring | 73mm threaded BSA bottom bracket shell | post mount disc tab | hub-drive specific 136mm spacing
Fork SR Suntour | SF20 NEX-HLO-DS | 63mm travel | lightweight alloy crown and monocoque lowers | weather-sealed stanchion protection | plush coil spring with adjustable preload | hydraulic lockout | post-mount disc brake
Rims Alloy | Width (internal): 26.6mm | Double-wall construction | 36h
Tires Kenda Kwick Seven.5 | 27.5 x 2.2"
Bottom Bracket 73mm threaded BSA shell | JIS square taper | Sealed cartridge
Crankset 3-piece | Forged alloy | 42T chainring with dual-guide design
Shifters Shimano Acera Rapidfire Plus | 8-speed
Rear Derailleur Shimano Acera M360 | 8-speed | Long cage
Cassette/Freewheel Shimano HG-31 | 11-32T | 8-speed
Chain KMC Z8.3 | 8-speed
Brakes Tektro HD-E350 | E-bike specific | 180mm oversized front / 160mm rear I.S. 6-bolt rotors
Brake Levers Tektro HD-E350 hydraulic with motor cut off
Handlebars Alloy Riser Bar, 40mm Rise, 660mm Width
Tape/Grips Del Sol Ergo Comfort | Dual Density
Stem Alloy | Threadless | Tool-free adjustable 0-70 degree angle | 110mm length
Headset Alloy | Threadless | Tool-free adjustable 0-70'š angle | 110mm length
Seatpost Alloy | Suspension | 40mm travel | 27.2 x 300mm
Saddle Del Sol Couch Plus saddle | Compression-tuned elastomers | Del Sol Hand-Holder e-bike-specific handle
Pedals Comfort | Shock-absorbing Kraton inserts
Accessories & Extras Kickstand | Alloy Rack | Full-Coverage Fenders | Front and rear lights, Charger & cables
Motor Bafang 350w Hub Motor
Battery 36V/14.5Ah | 522Wh | Fully-integrated

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black / Medium 691840317139 31713 210000003892
